Spark I-100
Square · 1:1
IP video door station.
A slim single-button door station with a colourful wide-angle lens, an NFC card reader and a bold round call button, built for homes, villas and small buildings.
2 MPwide angle
A wide view of whoever is at the door, through an iridescent lens.
NFCcards
Tap a card to open. Cards are added and removed from the indoor monitor.
< 1.5W
Standby power, with a maximum of 300 mA at DC 15 V.
-10to +55 °C
Working temperature.

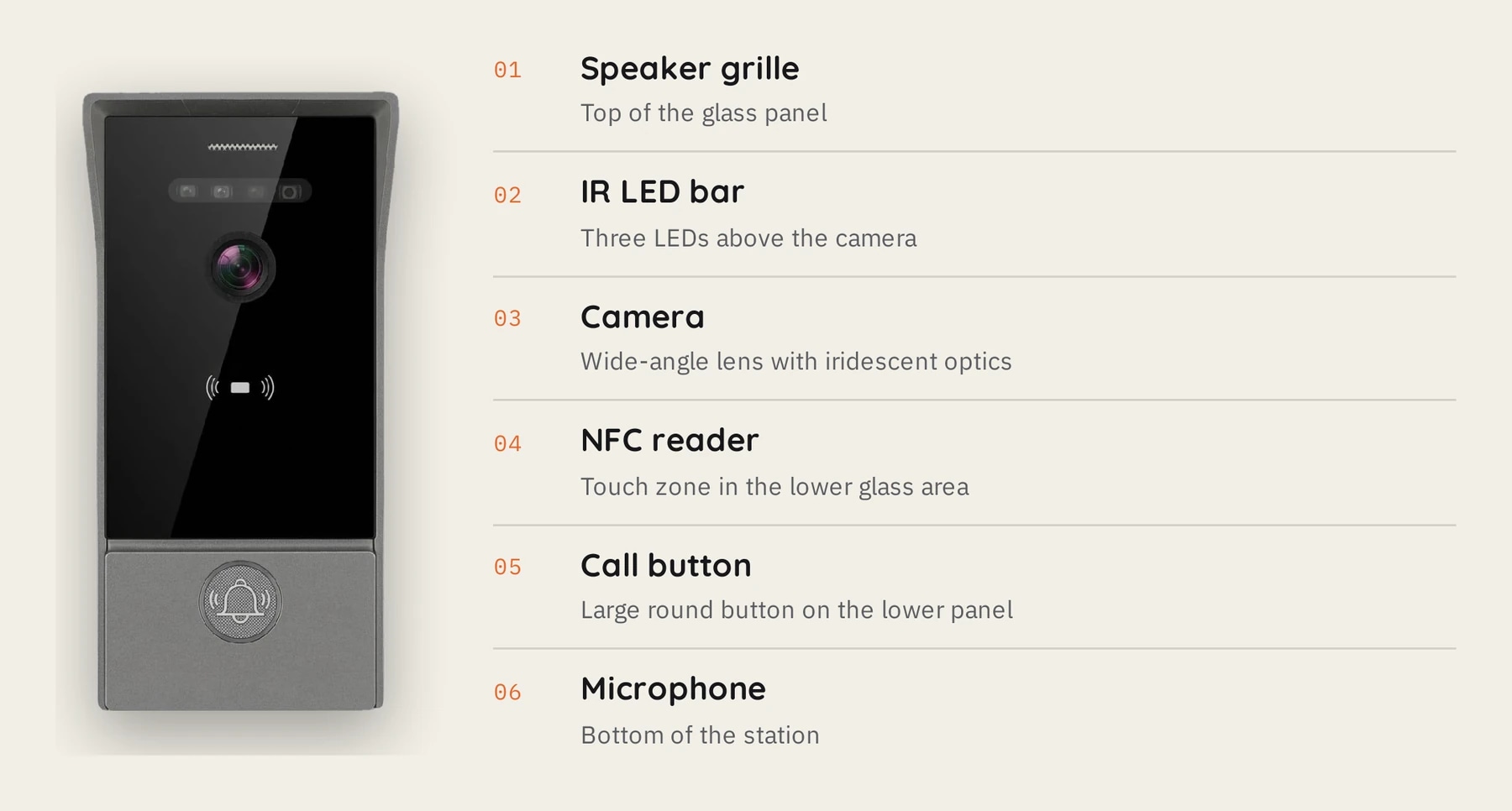

At the door

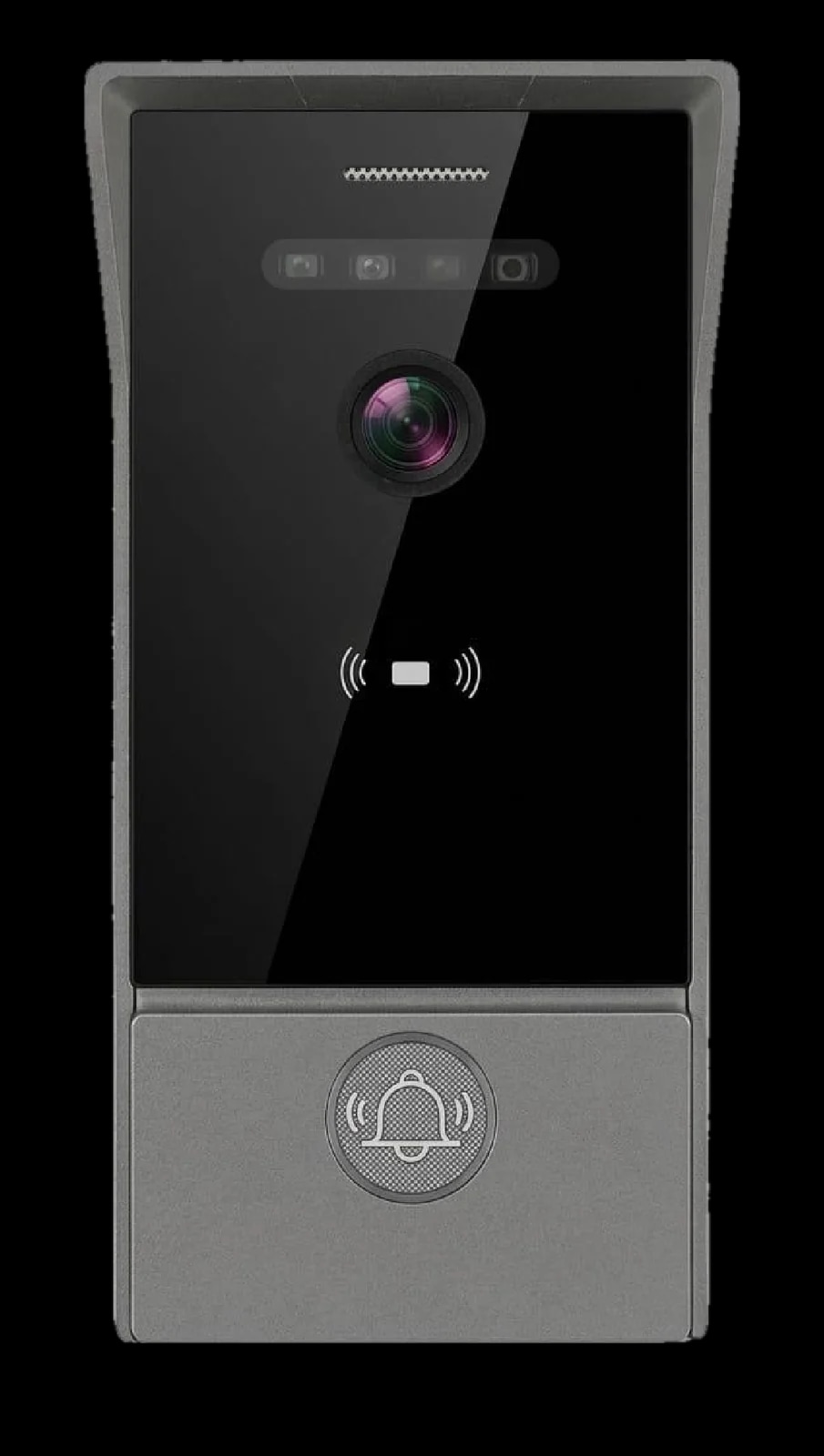

One call button, one camera, one card reader, in a compact aluminium-grey housing that's easy to install and easy to use.
A wide view of whoever is at the door.
Infrared LEDs for clear images after dark.
Both sides speak at once, like a phone call.
Tap an NFC card on the reader to open the door.
Picks up movement and people at the door.
One cable for power and data, or a DC 12 to 15 V supply.
Visitor calls

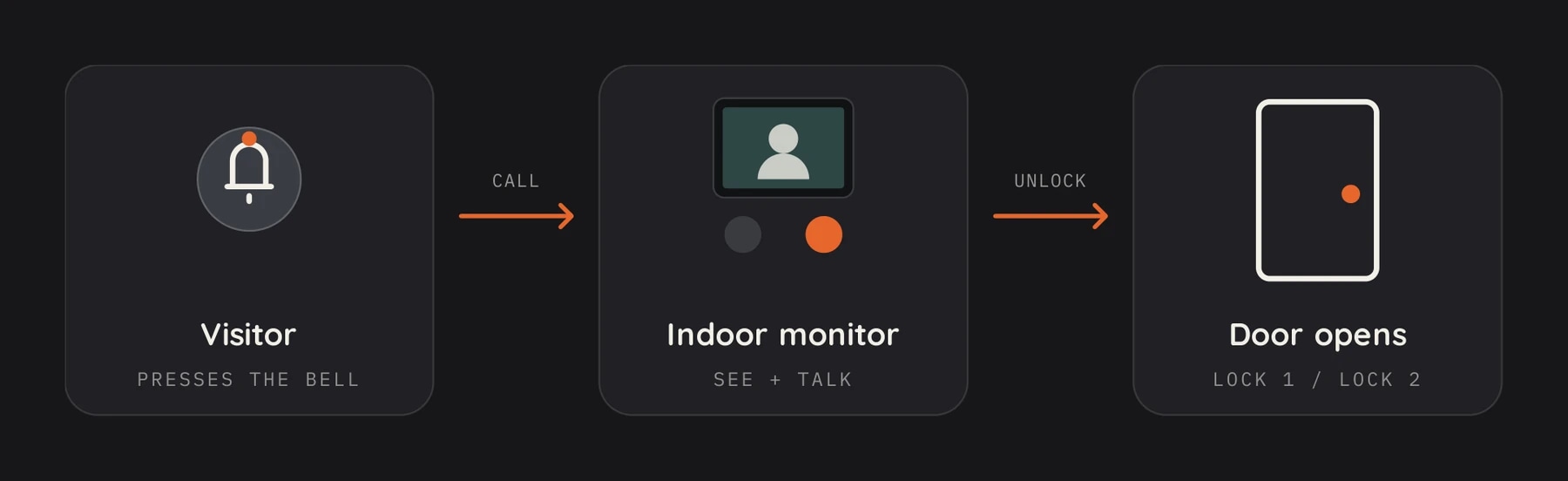

The visitor presses the call button and the indoor monitor on the same network rings. The resident sees them, talks in full duplex and taps Unlock to open the door.
2 MP camera with a wide viewing angle.
Infrared LEDs light the scene after dark.
Detects movement and people in front of the door.
IR LEDs and lens indicators confirm power and call state.
Cards and locks
Residents unlock with an NFC card at the reader. Cards are added and removed from the indoor monitor, and deleting a card only affects that household, never the neighbours.
Put the station in add mode from the indoor monitor, then tap each new card.
Delete one card, swipe several in delete mode, or clear them all.

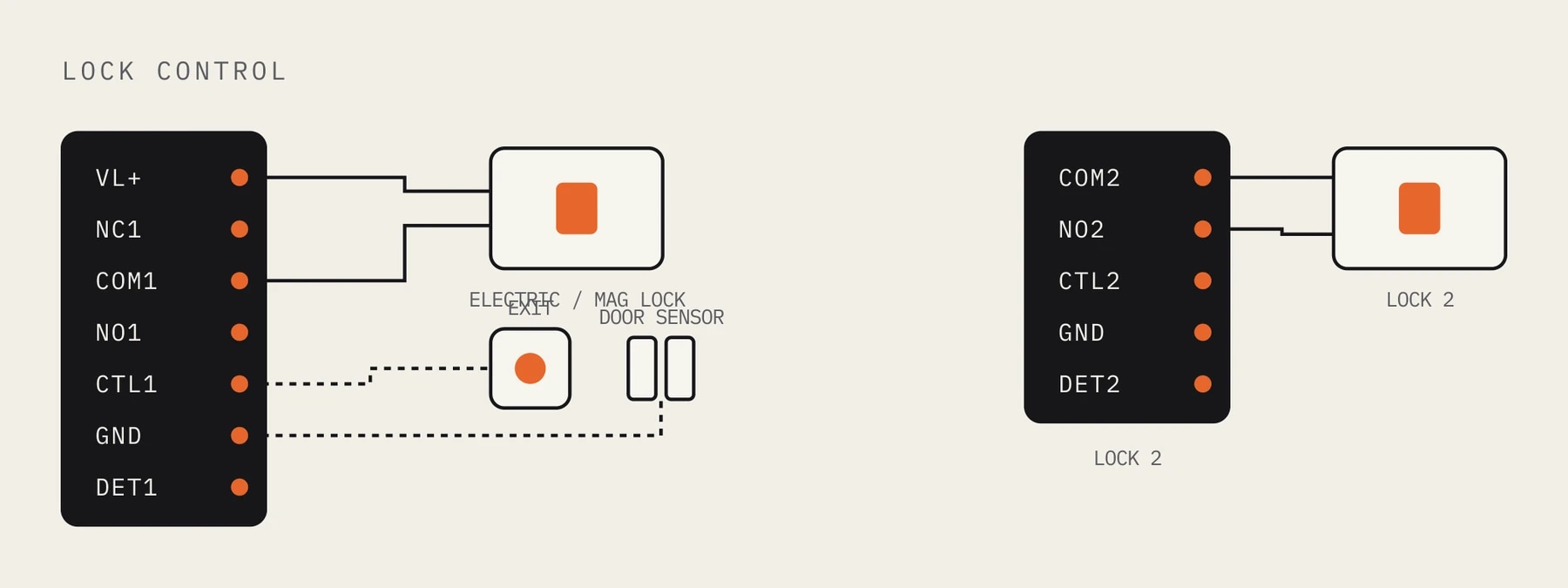

Lock 1 (NO / NC) and Lock 2, for electric or magnetic locks.
A door-release button input for each lock.
A door-contact input for each lock.
Power the lock from the station's own lock output (VL+).
Installation

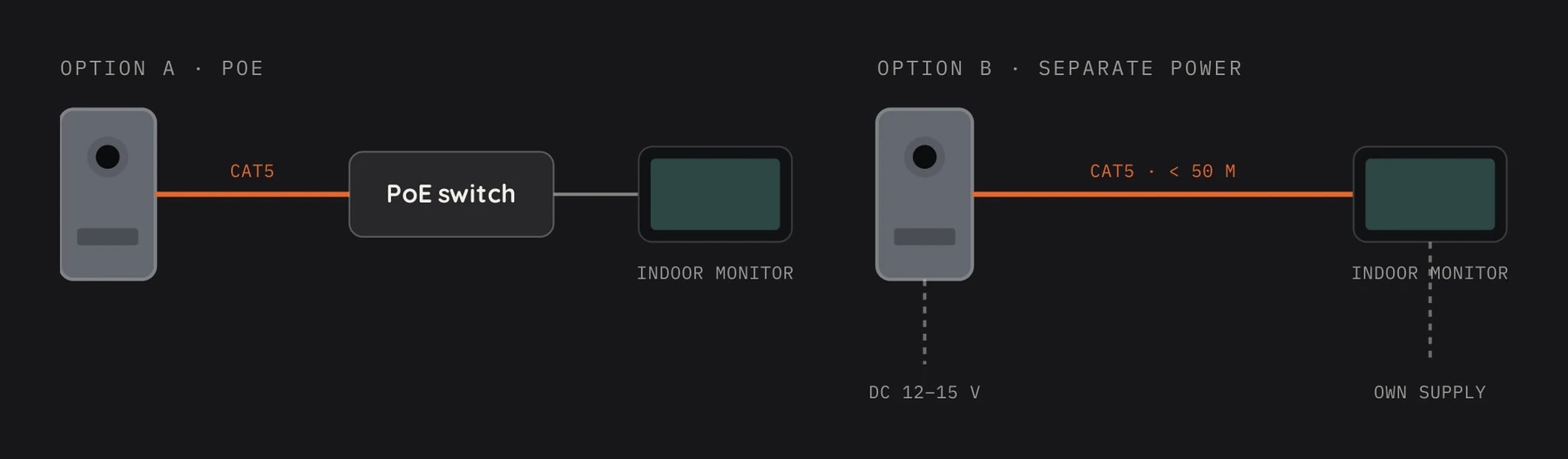

Power the I-100 over PoE on the same network as the indoor monitor, or give each unit its own supply and link them with a Cat5 cable. It configures itself by DHCP.
Cat5 / Cat5e under 50 m to the indoor monitor, and RVV 2×1.0 under 10 m for the lock.
Surface mount with the wall bracket, camera at eye level.
Unlock time, ring and call volume and motion sensitivity are set from the indoor monitor.
RJ45 port, volume adjustment and a factory reset button.
Planning a home or a building? A Spark partner can specify the right I-100 for it.
