Spark S-302
Square · 1:1
Ethernet IP video intercom kit.
Everything you need in one box. The S-302 pairs a 7-inch IPS touchscreen indoor monitor with a 3.0 MP outdoor station: IC card access, infrared night vision, full-duplex audio and Tuya smart-home control, all over a standard Ethernet network.
3.0 MPFHD 1080P
Outdoor camera, with H.264 video.
140°wide angle
Covers the full entrance, with no blind corners.
7″IPS touch
A 1024 × 600 indoor display with side-panel buttons.
IP65outdoor
Aluminium alloy, working from -30 °C to +50 °C.

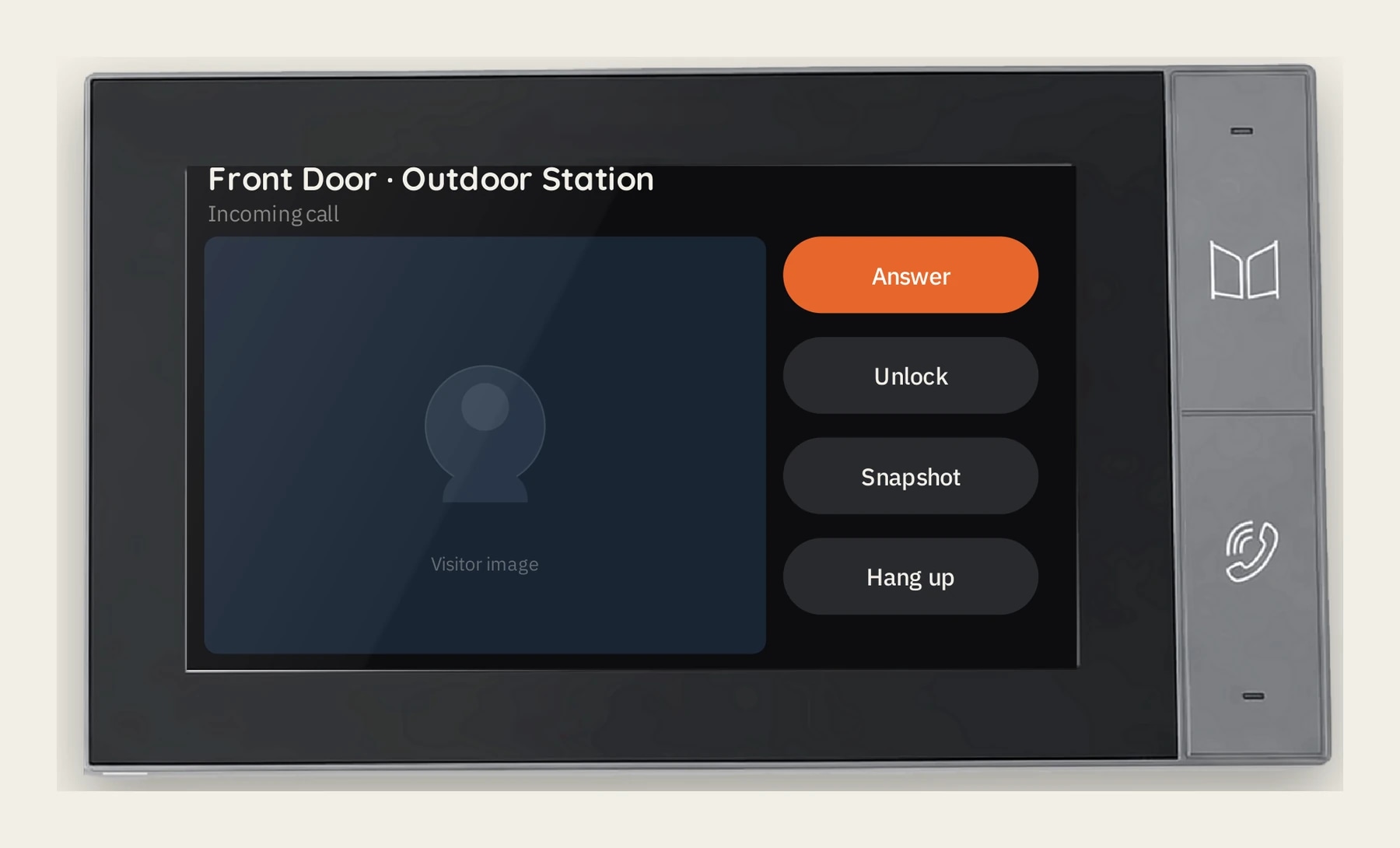

Answer the door
The outdoor station's call button rings the indoor monitor instantly. See the visitor in FHD 1080P, talk in full duplex and unlock with a tap, all from the 7-inch touchscreen.
Talk and listen at the same time, like a natural conversation.
Unlock the door directly from the call screen with one tap.
Save a JPG photo or a video clip to the SD card (up to 128 GB) during the call.
Residents can present an IC card to the outdoor station to unlock without calling.
The outdoor station's infrared illumination switches on automatically after dark.
An aluminium alloy outdoor station rated IP65, dust-tight and rain-resistant.

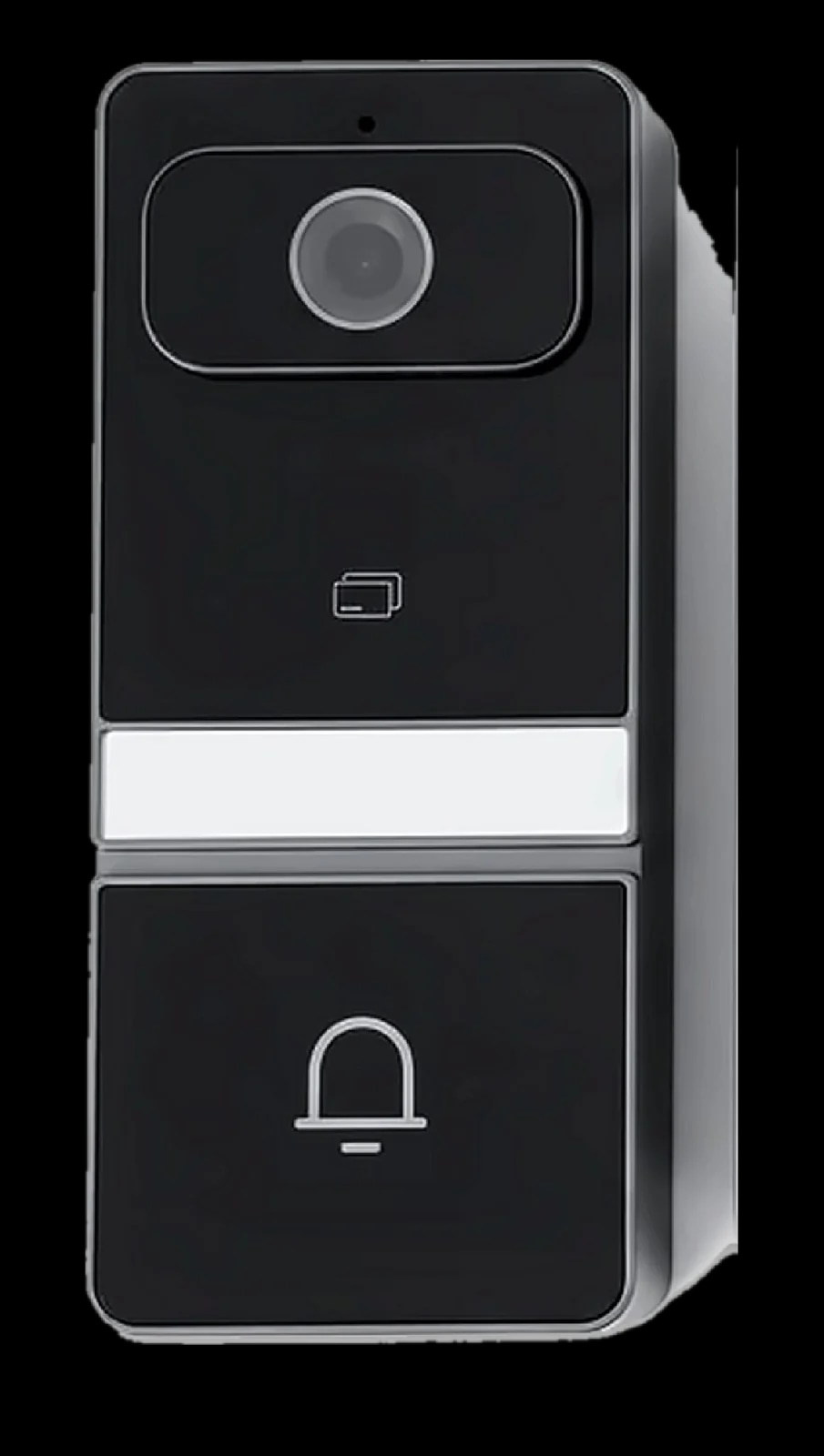

Outdoor station
The S-302 outdoor station is built from aluminium alloy and rated IP65. Its 3.0 MP camera covers 140° and switches to infrared night vision automatically, so you always see who's there, rain or shine.
FHD 1080P video in H.264, a sharp image at any time of day.
The wide lens captures the full entrance, with no blind corners.
Infrared illumination switches on automatically for clear images after dark.
Dust-tight and water-resistant, for all outdoor conditions.
The built-in card reader supports standard IC cards for keyless entry.
140 × 60 × 25 mm. Compact, robust and tamper-resistant.

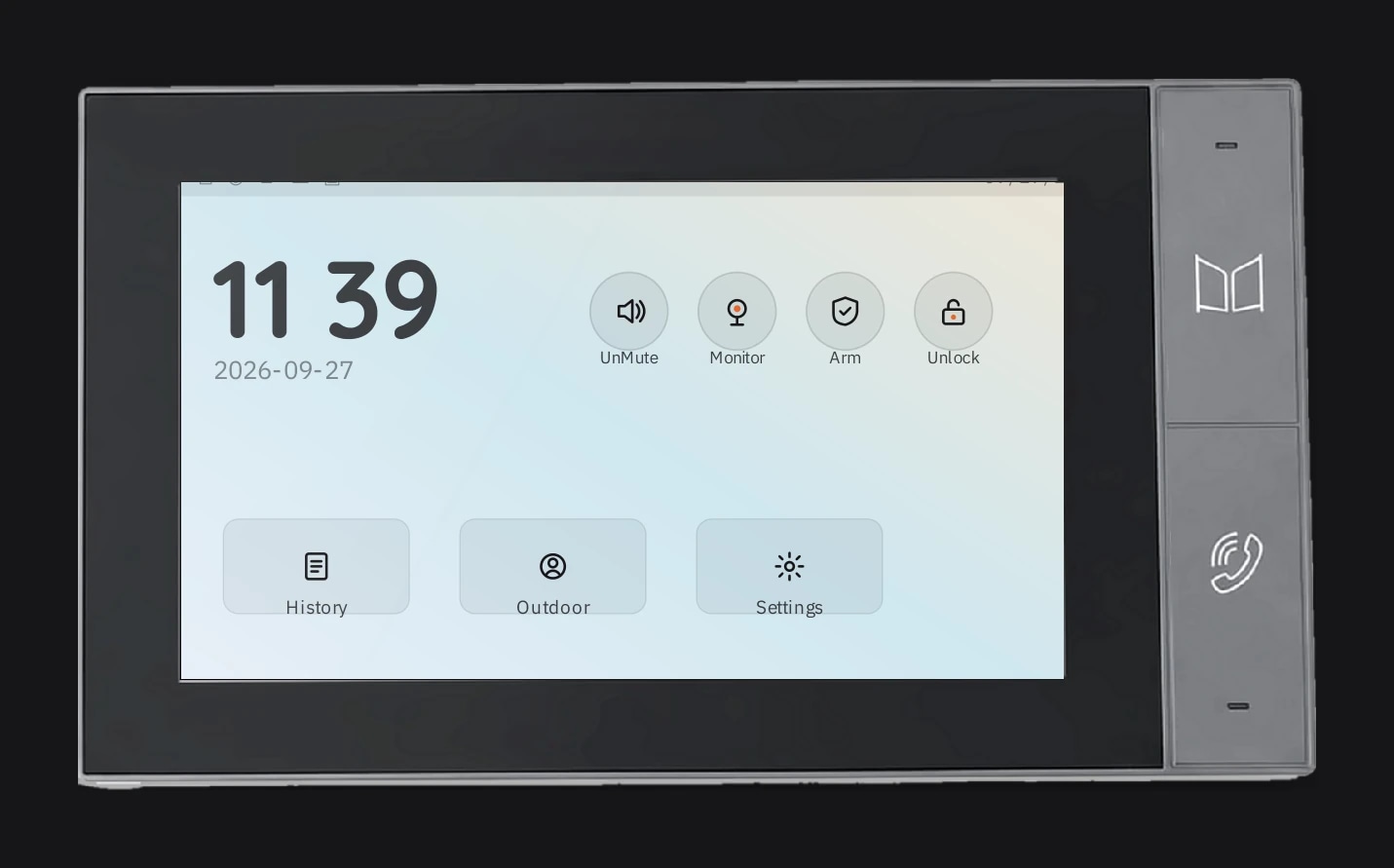

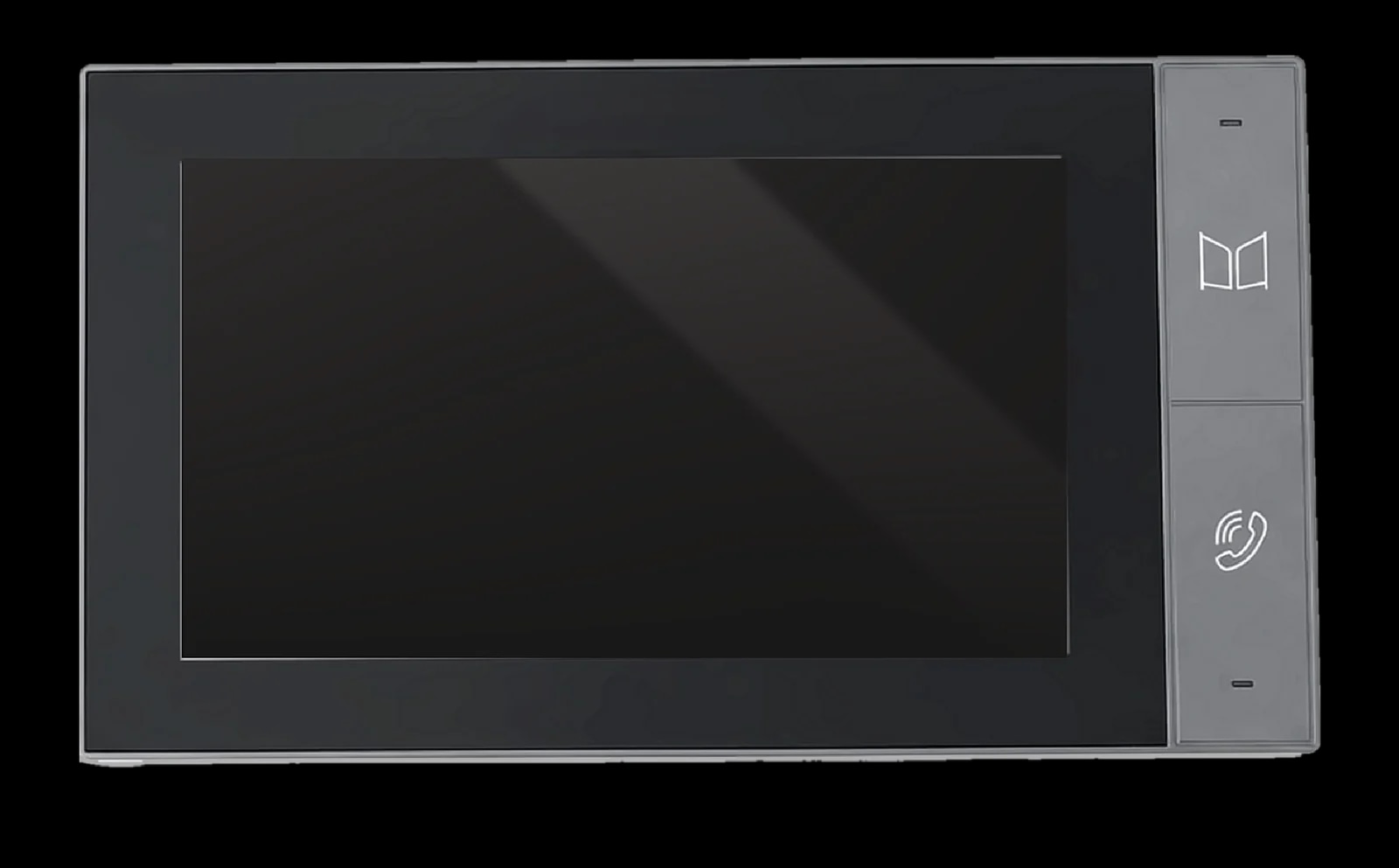

Indoor monitor

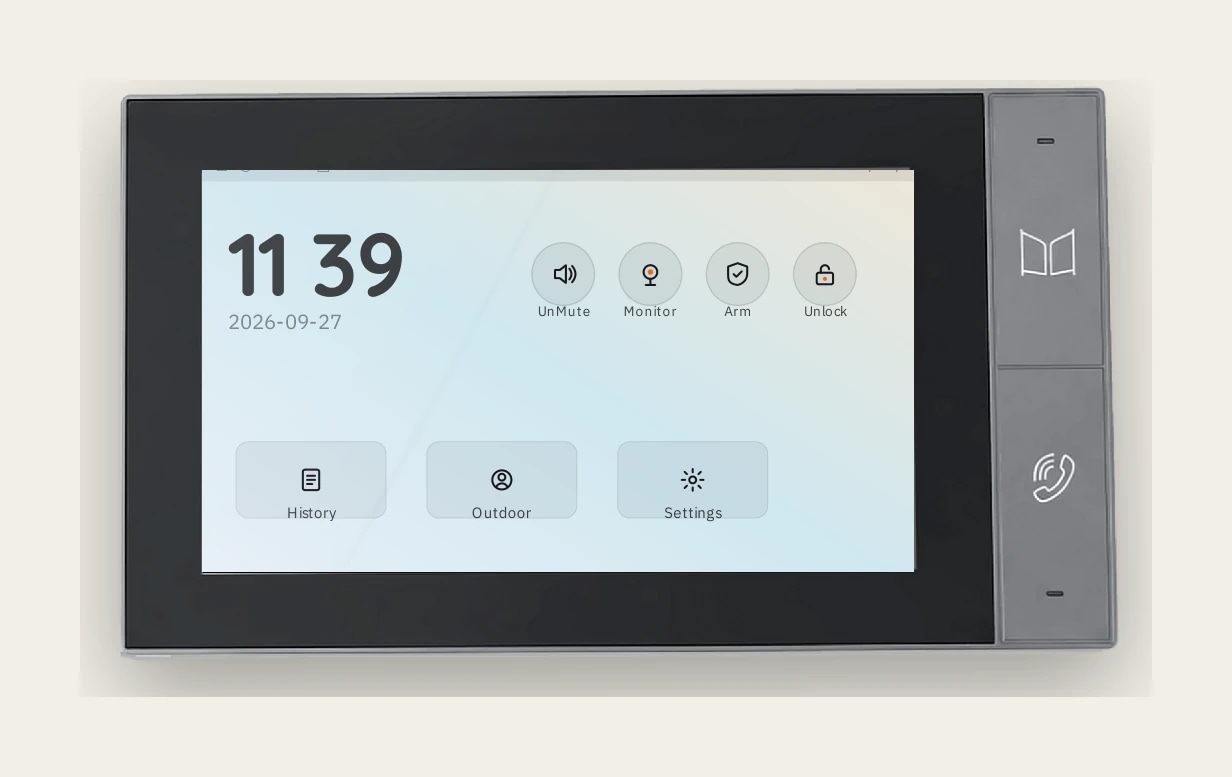

The indoor monitor's 7-inch IPS touchscreen shows visitors at 1024 × 600. Physical answer and unlock buttons on the side panel let you respond without even looking at the screen.
A 1024 × 600 IPS display with wide viewing angles and vivid colour.
Receives H.264 FHD 1080P video from the outdoor station.
An 8 Ω 2 W speaker with a -40 dB microphone.
Physical answer and unlock buttons for a fast, tactile response.
Save JPG snapshots or video to an SD card of up to 128 GB.
Receive calls, view the camera and unlock remotely from the Tuya or Smart Life app.
Smart home
The S-302 pairs with the Tuya and Smart Life apps over Wi-Fi. Receive door calls on your smartphone, view the live camera feed and unlock the door from anywhere in the world.
When the outdoor station rings, your phone rings too. Answer and unlock from anywhere.
Open the Tuya app at any time to view the outdoor station's live camera feed.
Power the kit from a PoE switch or a DC 24 V supply, whichever suits the installation.
Installation
Connect the indoor monitor and outdoor station with a single UTP Cat5 or Cat5e cable. Power from a PoE switch or a DC 24 V supply. Both units mount to any flat surface with the included hardware.
UTP Cat5/Cat5e from the outdoor station to the indoor monitor, up to 50 m.
Connect the relay lock with RVV 2×1.0 cable, up to 10 m.
Indoor unit: DC 24 V or PoE. Outdoor unit: DC 24 V / 200 mA via the indoor unit or PoE.
Wall brackets and all fixings are included.
The relay output drives one motor-operated electric lock (12 V, max 500 mA instantaneous).
Planning a home or a building? A Spark partner can specify the right S-302 for it.
