Spark S-107
Square · 1:1

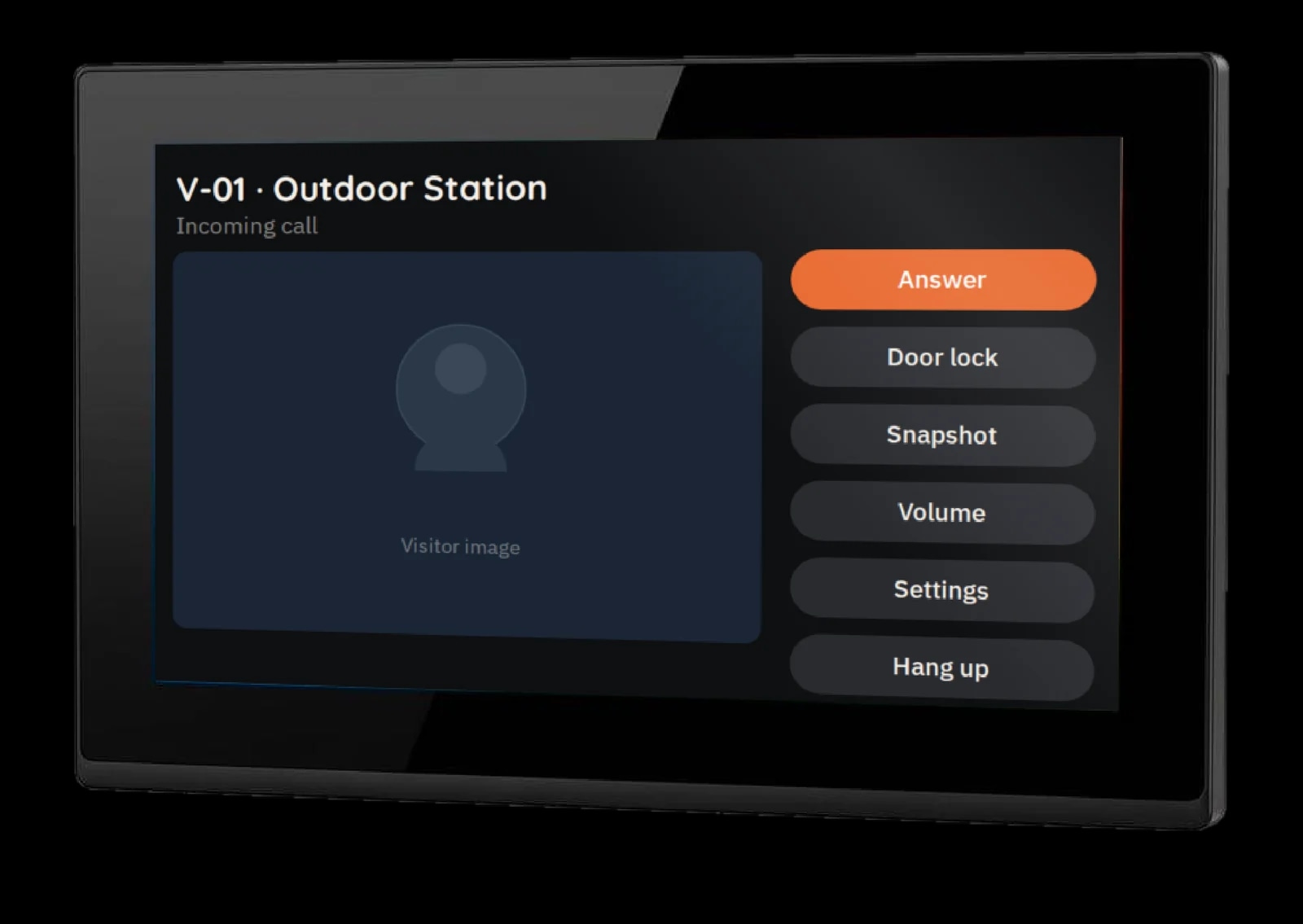

7-inch IPS IP video intercom indoor monitor.
See who's at the door, answer in full duplex and unlock, all from a vivid 7-inch wall panel. The S-107 also monitors your cameras, manages alarm zones and connects to the Tuya smart-home ecosystem.
7″IPS
A 1024 × 600 wall display for calls, cameras and alarms.
100monitors
Indoor monitors can share one outdoor station.
1cable
Cat5 or Cat5e carries data and DC 15 V power.
< 2.5W
Standby power, with a maximum of 350 mA.
Answer the door
When a visitor presses the call button outside, the S-107 shows their image on screen with the outdoor unit's room number. Talk in full duplex, then unlock with a tap.
Talk and listen at the same time, with no push-to-talk delays.
Unlock the door lock with a single tap from the intercom screen.
Save a JPG or record a video clip of the visitor to the SD card.
Adjust the visitor's audio volume (0 to 100) during the call.
Set brightness, contrast and colour of the live video (0 to 100 each).
Also unlock a lock wired directly to the monitor's own relay.
Monitoring
Open the monitoring page at any time to view any outdoor station. Switch channels, talk two-way and save snapshots or video to the SD card.
Pull down the station list and tap any online outdoor unit to change the view instantly.
Tap the intercom button while monitoring to open a full-duplex channel to the outdoor unit.
Save a JPG snapshot or record a video clip, both stored on the SD card.
Adjust brightness, contrast and colour (0 to 100 each) from the monitoring view.
Security zones

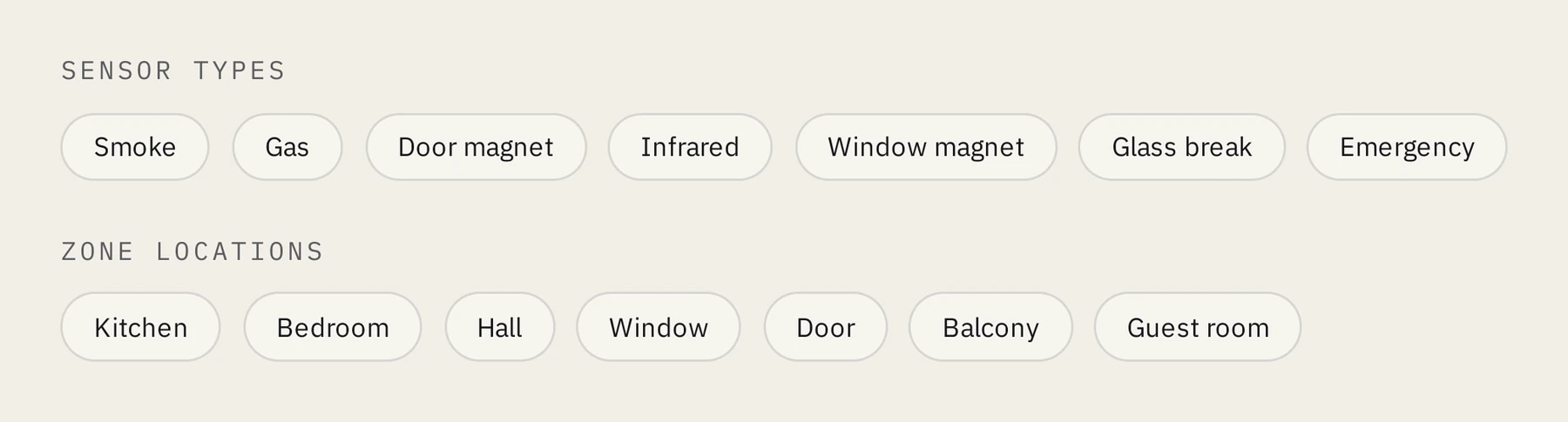

The S-107 manages multiple alarm zones across smoke, gas, door-magnet, infrared, window-magnet and glass detectors. A 60-second countdown arms the system, and a 6-digit password disarms it.
Arm with a 60-second countdown, disarm with your 6-digit password.
Each zone supports normally-open or normally-closed detector wiring.
Continuous motion sensing on the connected outdoor station.
Person-detection alerts, depending on the connected outdoor station.
Smart home
The S-107 runs the Tuya platform natively. Pair it with your smart locks, lights and sensors in the Tuya app and control them alongside your intercom. One panel, everything.
Built-in Tuya support connects straight to the Tuya smart-home platform.
Manage intercom calls, alarm zones and settings, and review recordings, from your smartphone.
Connects to any DHCP network automatically, with no static IP required.
One Cat5/5e cable carries data and power. No extra power brick needed.
Installation
The S-107 ships with all mounting hardware. Run a single Cat5 or Cat5e cable from your PoE switch, or supply DC 15 V directly. Up to 100 indoor monitors can share one outdoor station.
UTP Cat5/Cat5e to the door station, with a maximum run of 50 m.
Connect relay lock control with RVV 2×1.0 cable, up to 10 m.
Bracket included. Mounts to any flat surface in minutes.
A maximum of 100 indoor monitor extensions per outdoor station.
Powered by a PoE switch at DC 15 V, max 350 mA.
Planning a home or a building? A Spark partner can specify the right S-107 for it.
