Spark WR-60 Dimmer
Square · 1:1
Keep your switch. Add a dimmer behind it.
A Wi-Fi dimmer module for dimmable LED lamps, fitted behind the existing wall switch. Choose one or two light circuits and adjust brightness continuously from 0 to 100% through the app or a compatible voice assistant. Connects to your home 2.4 GHz Wi-Fi network.
0–100%
Stepless LED dimming.
1 / 2channels
One or two independent light circuits.
150W
1CH LED maximum at 230 V.

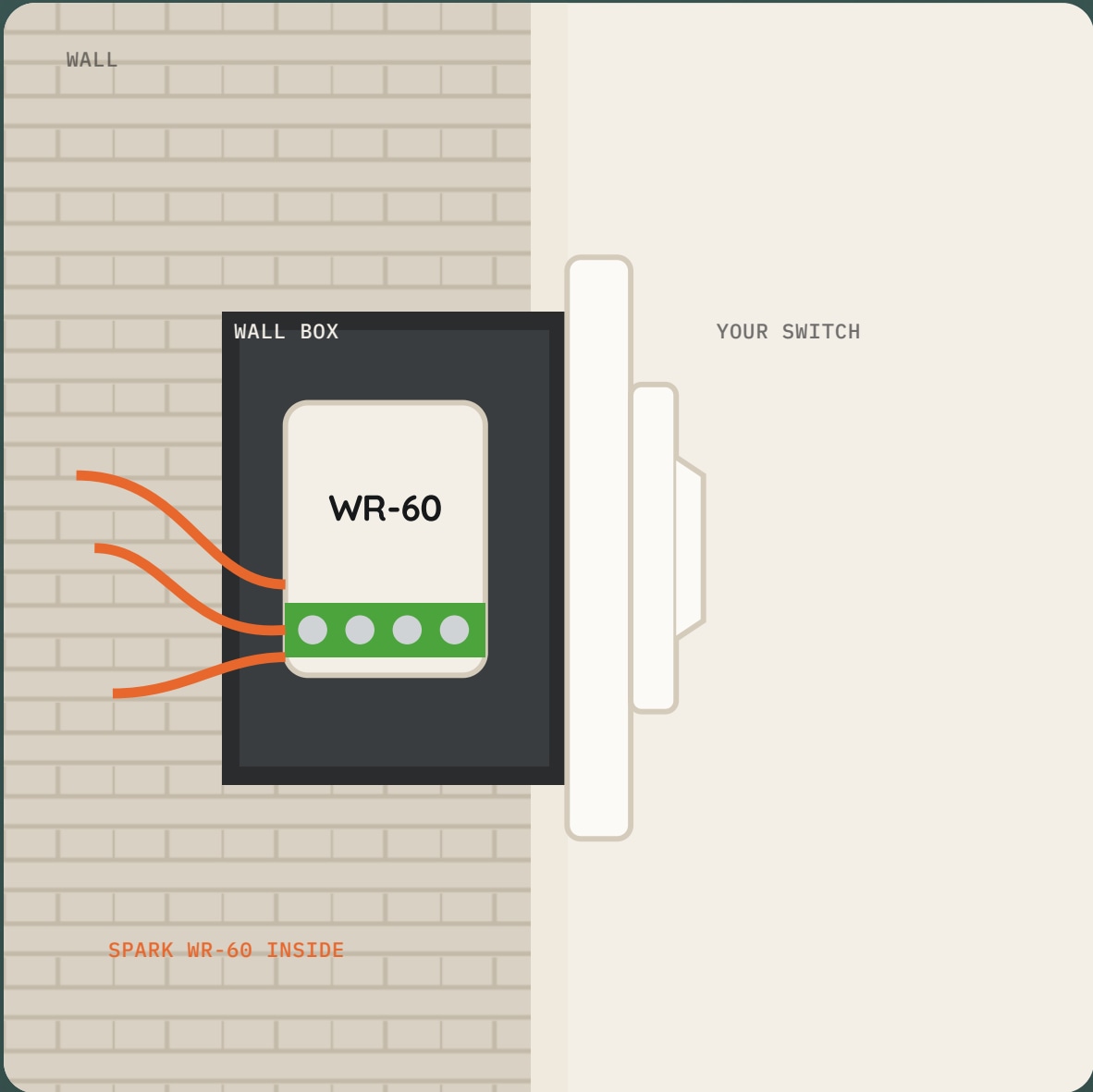

How it fits
Fits in the wall box behind the switch you already have, with a neutral wire required in the box.
Use existing wall switches, including supported two-way arrangements.
Connects to your home 2.4 GHz Wi-Fi network.
Installation by a qualified electrician with the circuit power switched off.
Stepless dimming
Set a soft glow for the night, lower light for a movie, or full brightness. Use dimmable LED lamps; check lamp compatibility before installation.
A soft glow to find your way.
Lower light for watching TV.
Full brightness when you need it.
Keep the wall switch and control brightness through the app or a compatible voice assistant.
Choose your version

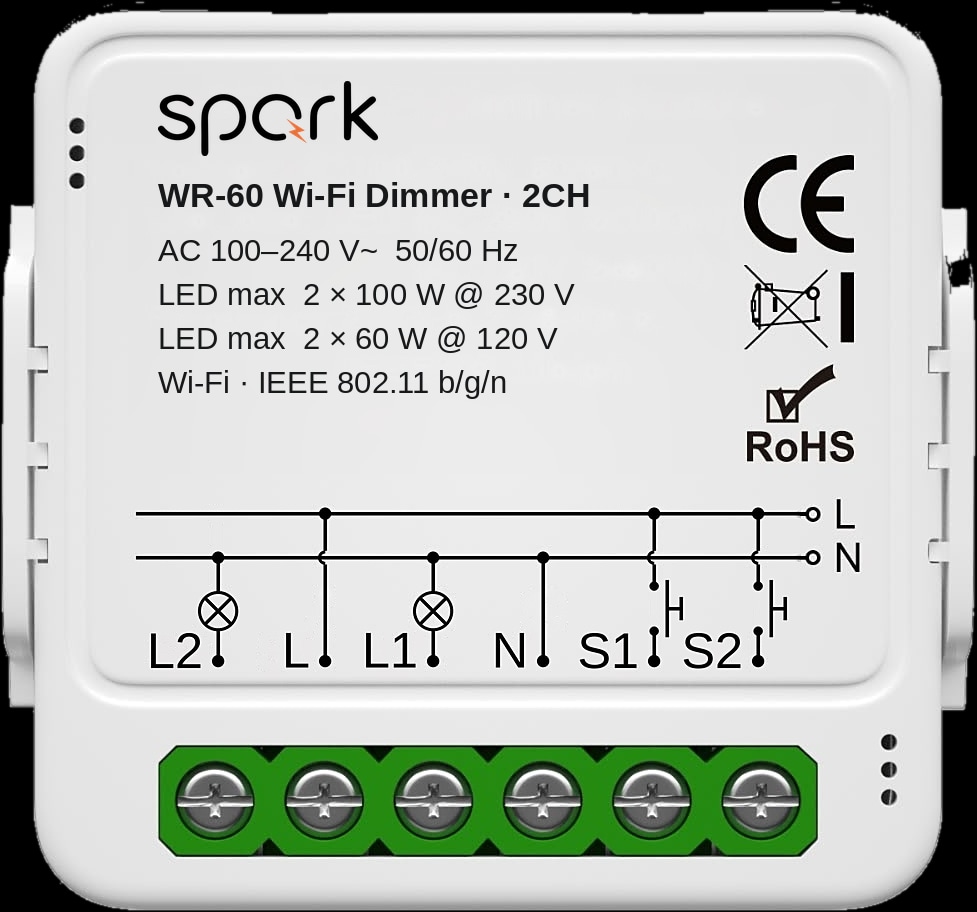

The 1CH version dims one lighting circuit; the 2CH version dims two circuits independently. LED load limits depend on the supply voltage.
LED 150 W at 230 V, or 80 W at 120 V.
LED 2 × 100 W at 230 V, or 2 × 60 W at 120 V.

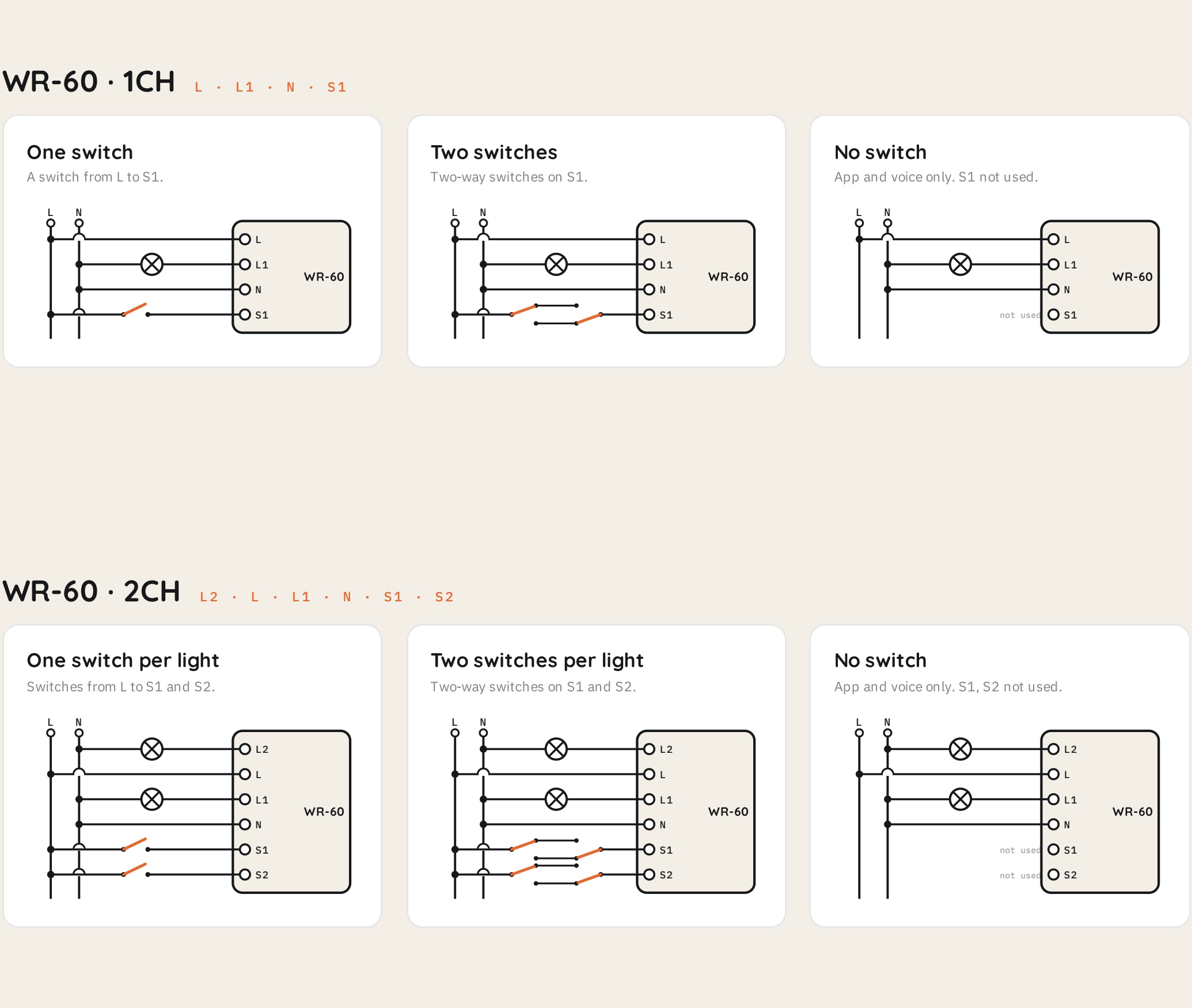

Original installation diagrams
The original brochure shows one switch per circuit, two-way switching, and operation without wall switches.
Use the supplied brochure for the complete terminal and wiring information.
Switch off circuit power before wiring; installation by a qualified electrician.
