Spark 16-CH Relay
Square · 1:1
Sixteen circuits. One module in the board.
A DIN-rail relay module for lights, motorised curtains, shutters, doors and gates. Four 50 A magnetic latching relays handle heavy-duty circuits, while twelve 16 A relays cover everyday loads. Choose the Zigbee 3.0 or Wi-Fi version and connect existing RS485 panels or wired switch inputs.
16channels
Independent circuit control.
50A
Channels 1–4: magnetic latching relays.
16A
Channels 5–16: everyday circuits.
Sixteen channels

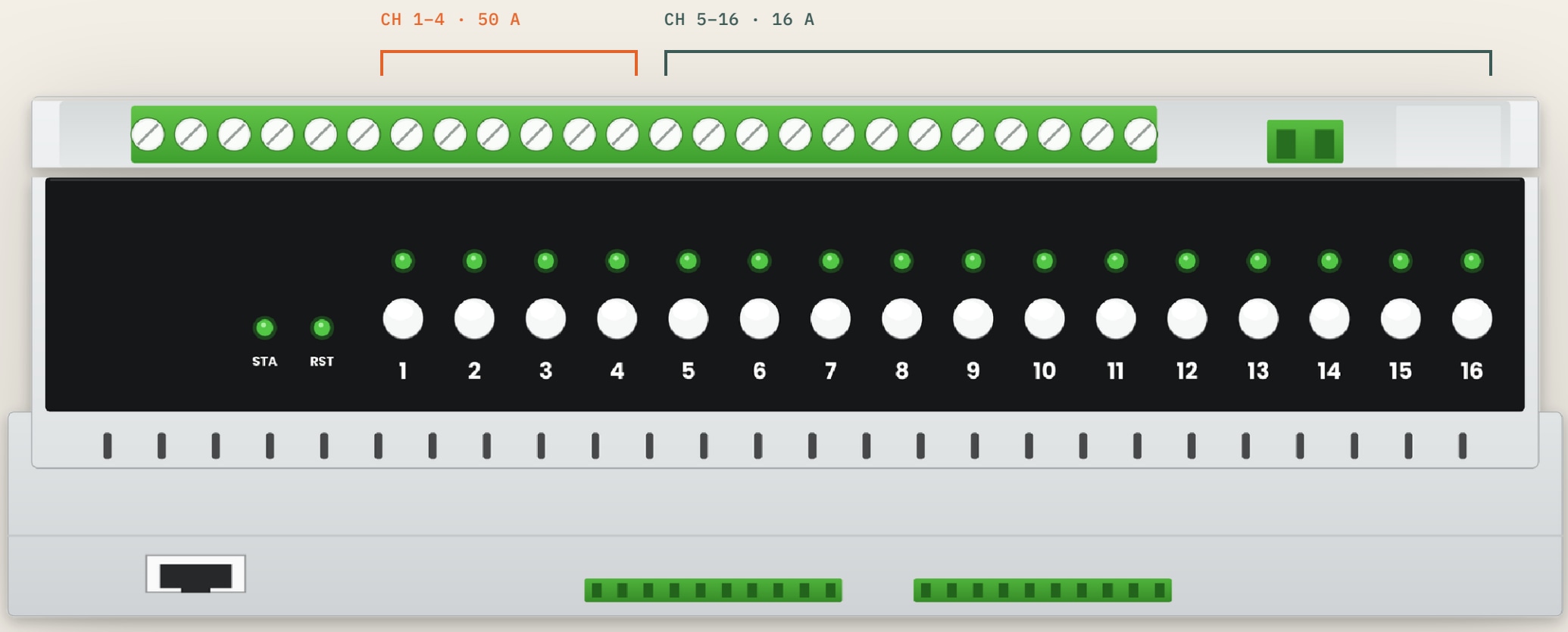

Channels 1–4 use 50 A magnetic latching relays. Channels 5–16 use 16 A relays. The front panel gives every channel its own button and LED indicator.
Channels 1–4 use 50 A magnetic latching relays.
Channels 5–16 use 16 A relays.
Operate channels individually or in sequence and see their status on the LEDs.
Existing wall controls
Connect RS485 switch panels, dry-contact switches, reset switches or ordinary rocker switches. External buttons can be locked and unlocked.
Supports RS485 switch panels on a data bus.
Connect existing dry-contact wall controls.
Supports reset (momentary) switches and traditional rocker switches.
Lock or unlock external buttons when needed.
More than lighting
The brochure lists motor control for curtains, sheers, roll-up doors and electric gates, alongside lighting circuits.
Bring window treatments into the same control system.
Supports motor control for roll-up doors and electric gates.
Use device linkage, groups and multiple-switch control.
When power returns
Power-recovery behaviour can be set to Off, On or a custom scene. The module can also serve as a hotel room control unit with bedside and entrance switch inputs.
Choose Off, On or Custom scene.
Use dry-contact or RS485 inputs at the bedside and entrance.
Zigbee 3.0 and Wi-Fi are separate product versions.
Planning a home or a building? A Spark partner can specify the right 16-CH Relay for it.
