IP67
Spark TL-150
Square · 1:1
Three locking points. One smart lock.
A fully automatic smart lock for 85-series doors with three locking points. Open with your face, a fingerprint, a password, a card or the Tuya app, and see who is at the door on the built-in camera.
5ways
Digital unlocking methods, plus a mechanical key backup.
5000mAh
Lithium battery.
3points
Top, middle and bottom lock together.

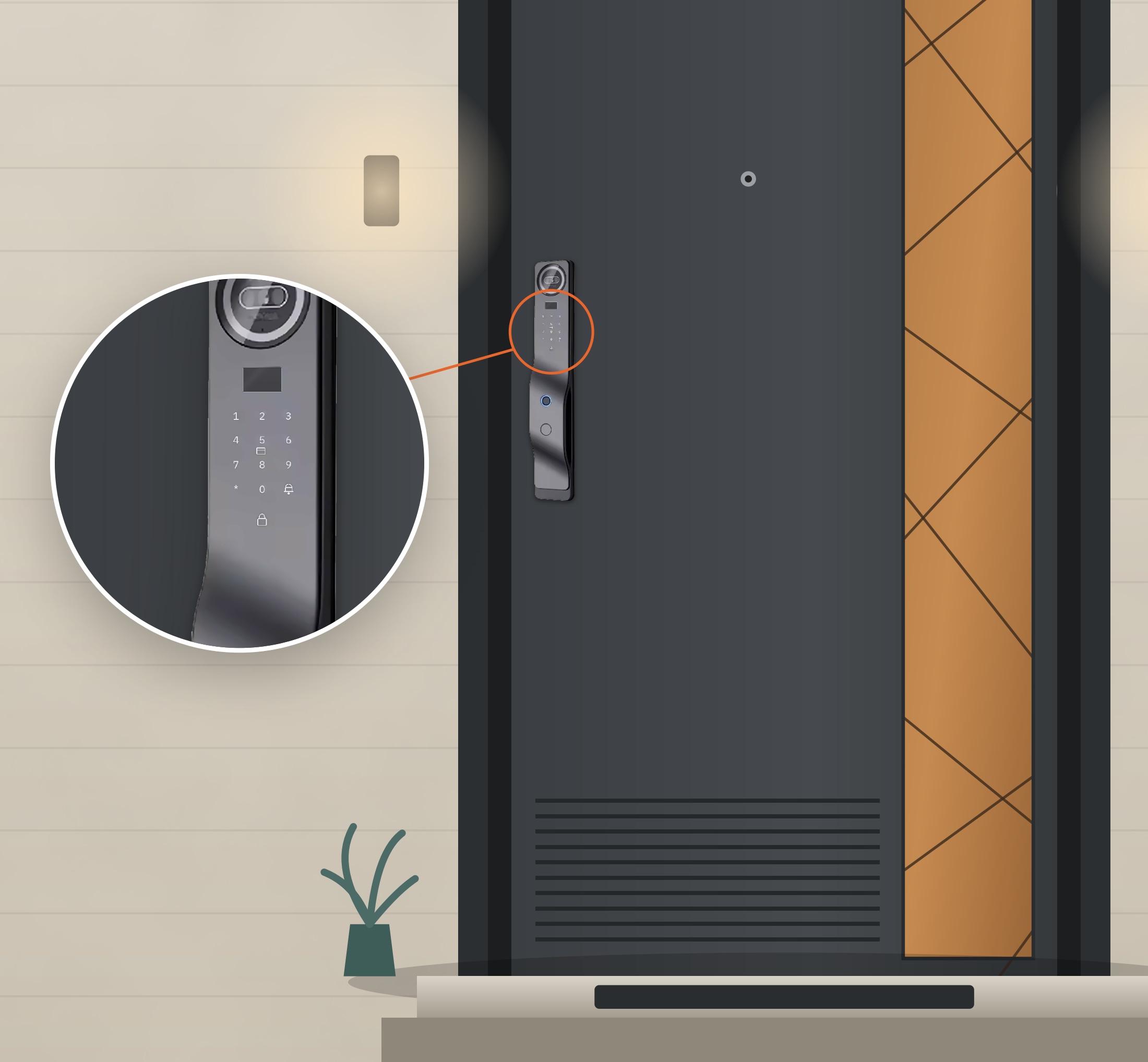

Made for your door
Made for 85-series doors with three locking points at the top, middle and bottom. The 6085 lock body works with the fully automatic drive.
85-series doors
Outside: 425 × 70 × 40 mm. Inside: 415 × 73 × 77 mm.
Joins the Tuya Smart app over your home Wi-Fi.
5 ways in · plus a key
Choose from 5 digital unlocking methods for family members and visitors, with a mechanical key as a backup.
Look at the camera to verify and open the lock.
Touch the fingerprint sensor.
Enter your code on the touch keypad.
Tap a card to open the lock.
Unlock through the Tuya Smart app.

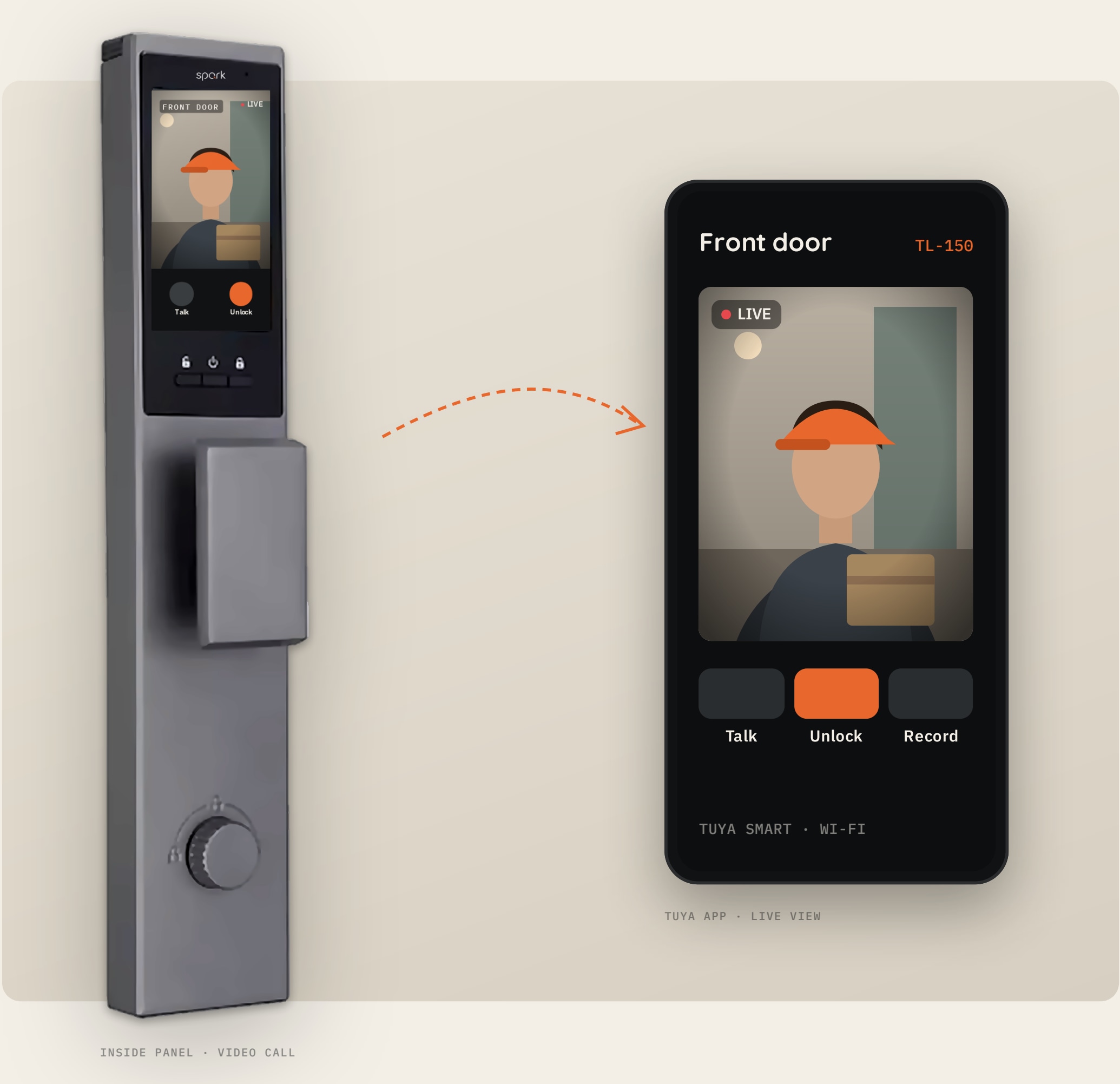

Camera · video call · live view
A camera is built into the outside panel. Answer a video call on the inside screen or your phone, and use the Tuya app to check the live view.
The camera sits in the outside panel.

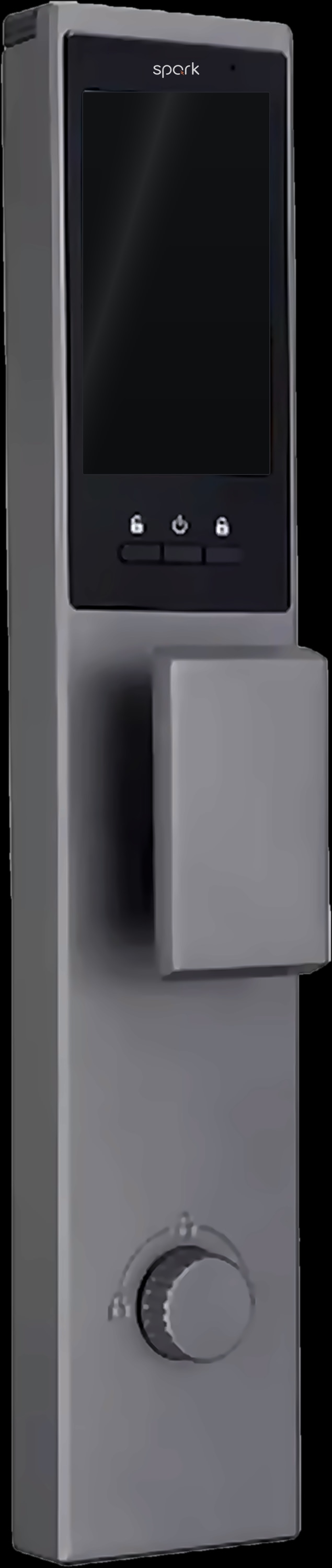

Answer from the inside screen or your phone.
Check the door through the Tuya app.
Fully automatic · self-opening
When verification succeeds, the motor opens the lock. On compatible 85-series doors, the top, middle and bottom locking points work together.
Use a recognised face, fingerprint, code, card or the app.
The motor retracts the bolts; there is no handle to turn.
The automatic mechanism runs on a 5000 mAh lithium battery.
85 series
Fits the 6085 lock body for 85-series doors, with 60 mm backset and 85 mm between the handle spindle and cylinder.
Three locking points work together.
From the faceplate to the cylinder centre.
Between the handle spindle and the cylinder.
Everyday power · backup access
Powered by 5000 mAh lithium. Keep the mechanical key as a backup, and use a power bank through the Type-C port for emergency power if the battery is flat.
5000 mAh lithium
Backup access when needed.
Connect a power bank to power the lock for entry.
Planning a home or a building? A Spark partner can specify the right TL-150 for it.
